标签质检 KSBQ 系列

LABEL QUALITY CONTROL KSBQ SERIES

系统参数:

检测幅宽:300---1500mm

检测速度:80---300 m/min

检测精度:0.08—0.25 mm²(10DN≤灰度差)

相机: DALSA 彩色4K相机

镜头:PENTAX YF3528

System parameters:


Test width: 300-1500mm


Detection speed: 80-300 M / min


Detection accuracy: 0.08-0.25 mm 2 (10dn ≤ gray difference)


Camera: DALSA color 4K camera


Lens: Pentax yf3528


产 品 描 述
INTRODUCTION

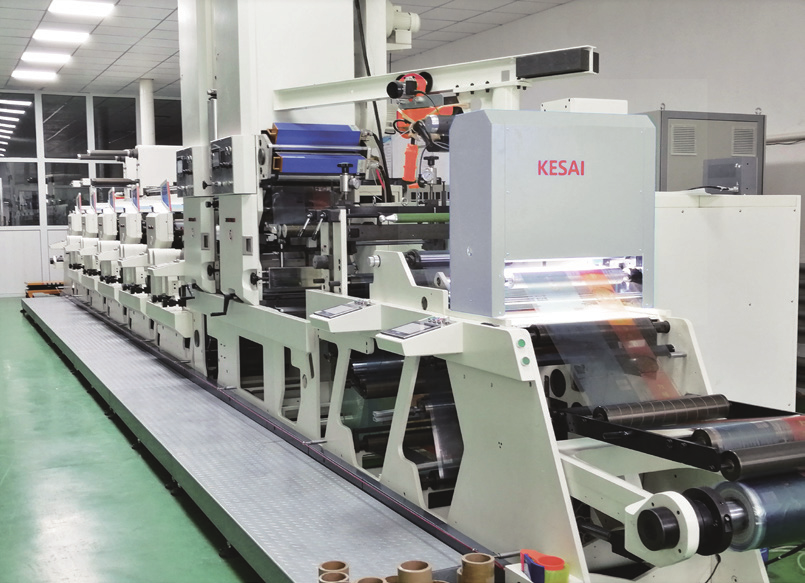

        KSBQ 为科赛标签印刷质量检测系列产品,可安装于标签印刷机、标签复检机、窄幅柔印机等机台上,既可用于对标签印刷、柔印印刷等过程的高速、实时、完全在线质量检测,也可用于在标签复检机、窄幅复卷机上对上述过程的结果印卷进行离线质量检测。系统可及时显示检出缺陷并声光报警,生成缺陷检测记录,KSBQ 用作离线检系统时有遇错即停、正转检反转剔等功能,可作为标签与柔印印刷后卷材出货前的主要质量控制手段。系统主要由检测箱、控制柜及互联电缆三大部分组成,检测相机与成像装置位于检测箱内,检测箱宽度可按机台安装要求定制。控制柜标配单显示器。

        Ksbq is a series of cosai label printing quality inspection products, which can be installed on label printing machine, label recheck machine, narrow flexo printer and other machines. It can be used for high-speed, real-time, full online quality inspection of label printing, flexo printing and other processes, as well as offline quality inspection of the results of the above processes on label recheck machine and narrow rewinder. Ksbq can be used as an off-line inspection system with the functions of stop in case of error, forward inspection and reverse inspection. It can be used as the main quality control means after label and flexo printing before coil delivery. The system is mainly composed of detection box, control cabinet and interconnection cable. The detection camera and imaging device are located in the detection box, and the width of the detection box can be customized according to the machine installation requirements. The control cabinet is equipped with single display as standard.




        系统的相机型号与数量,取决于客户产品生产对检测精度与速度的要求。KSBQ用于标签等复检机台时,可不配标准电控柜,而将系统核心部件显示器、图像服务器、光源驱动器、IO 控制器等均布置于机台电柜箱内,以省去检测系统的占地面积。

        The model and number of cameras in the system depend on the requirements of the customers for the detection accuracy and speed. When ksbq is used to recheck the machine such as label, it can not be equipped with standard electric control cabinet, but the core components of the system, such as display, image server, light source driver, IO controller, etc., can be arranged in the machine electric cabinet box, so as to save the floor space of the detection system.

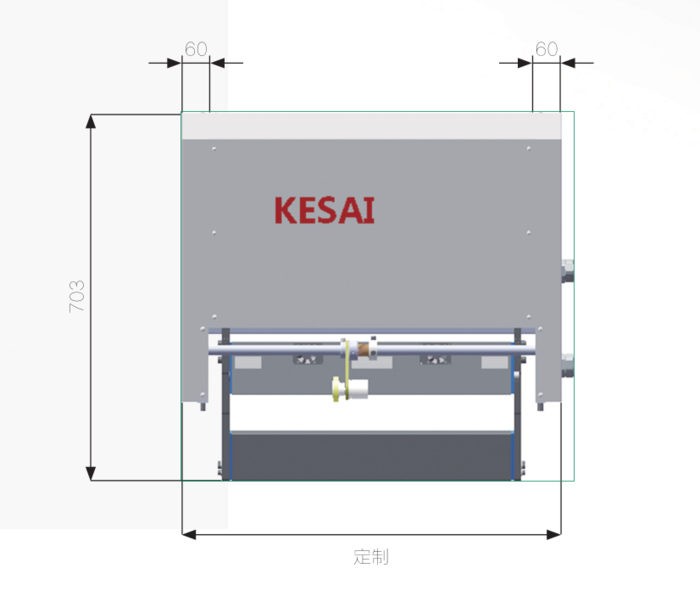

        单相机 1C4K2/1C8K2 检测箱

        Single camera 1c4k2 / 1c8k2 detection box

单相机 1C4K21C8K2 检测箱.png



        控制柜


        Control cabinet




        根据客户要求定制

        Customized according to customer requirements
