在线质检KSPL-3系列

ONLINE QUALITY INSPECTION KSPL SERIES

系统参数:

检测幅宽:300---1600 mm

检测速度:80---400 m/min

检测精度:0.1—0.25 mm²(10DN≤灰度差)

重复周期:1200 mm

相机: 高速光纤4K彩色相机

镜头:PENTAX YF3528


system paramete

Detection width:300---1600 mm

Detection speed:80---400 m/min

check the accuracy:0.1—0.25 mm²(10DN≤Gray difference)

Repetition period:1200 mm

camera: Optical fiber Color 4K camera

camera lens:PENTAX YF3528



产 品 描 述
INTRODUCTION

        KSPL 为科赛印刷质量在线检测系列产品,可安装于凹印机、宽幅柔印机等平台上,对宽幅卷料印刷过程进行高速、实时、完全缺陷检测和质量控制,可实时显示检出缺陷并声光报警,是防止印刷过程产生连续废料的关键手段。该系列产品能覆盖对薄膜软包装、透明料膜、烟包、液体包、装饰纸等材料印刷时的检测。

        Kspl is a series of cosai printing quality on-line detection products, which can be installed on gravure printing machine, wide flexo printing machine and wide inkjet printer. It can carry out high-speed, real-time and complete defect detection and quality control in the wide roll printing process, and can display the detected defects in real time and give sound and light alarm. It is the key means to prevent continuous waste in the printing process. This series of products can cover the detection of film flexible packaging, cigarette package, liquid package, tipping paper and other materials when printing.

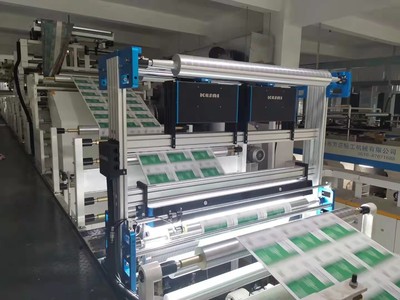

        双相机 2C4K3检测支架


        Dual cameras 2C4K3 detection bracket

双相机 2C4K2C4K2 检测支架.png

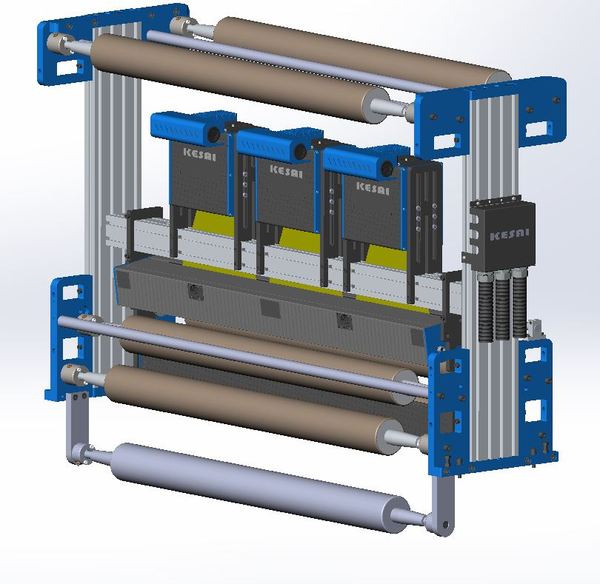

        三相机 3C4K3 检测支架

        Three cameras 3C4K3 detection bracket

单相机 1C8K2 检测支架1.png




        控制器

        controller




        根据客户要求定制尺寸

        Customized size according to customer requirements
