离线质检 KSPR 系列

OFFLINE QUALITY INSPECTION KSPR SERIES


系统参数:

检测幅宽:300---1600 mm

检测速度:80---400 m/min

检测精度:0.1—0.25 mm²(10DN≤灰度差)

重复周期:1200 mm

相机: DALSA 彩色4K相机

镜头:PENTAX YF3528


System parameters:


Detection width: 300-1600 mm


Detection speed: 80-400 M / min


Detection accuracy: 0.1-0.25 mm 2 (10dn ≤ gray difference)


Repetition period: 1200 mm


Camera: DALSA color 4K camera


Lens: Pentax yf3528





产 品 描 述
INTRODUCTION

        KSPR 为科赛印刷质量离线检测系列产品,可安装于复卷机、品检机、分切机与喷码机等平台上,对印刷完成后的印卷进行高速、实时、完全缺陷检测和质量控制,可及时显示检出缺陷并声光报警,能生成缺陷检测记录,与 KSPL 在线质检系统不同,KSPR 可支持对指定缺陷贴标、机台正转检反转剔及遇到筛选缺陷后立即、准确停机剔废等功能,是印刷到制袋或按印卷出货前主要的质量控制手段。

        Kspr is a series of off-line detection products of cosai printing quality, which can be installed on the platforms of rewinder, quality inspection machine, Slitter and inkjet printer. It can carry out high-speed, real-time and complete defect detection and quality control on the printed roll after printing. It can display the detected defects in time, give sound and light alarm, and generate defect detection records. Different from kspl online inspection system, kspr It can support the functions of labeling the specified defects, machine forward and reverse inspection, and stop the machine immediately and accurately to eliminate the waste after encountering the screening defects. It is the main quality control means before printing to bag making or shipping according to the printing volume.



        双相机 2C4K/2C4K2 检测支架

        Dual camera 2c4k / 2c4k2 detection bracket


双相机 2C4K2C4K2 检测支架.png


        单相机 1C8K2 检测支架

        Single camera 1c8k2 detection bracket


单相机 1C8K2 检测支架.png

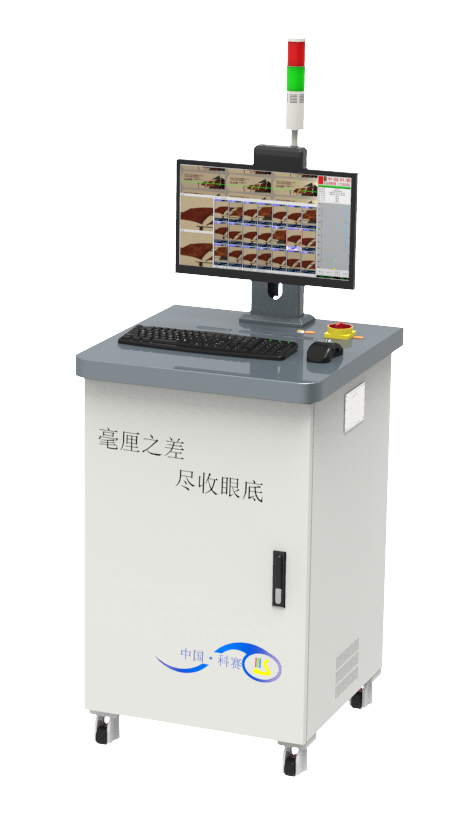

        控制柜

        Control cabinet




        根据客户要求定制尺寸

        Customized size according to customer requirements
