涂布质检 KSTB 系列

APPLIED QUALITY INSPECTION KSTB SERIES


系统参数:

检测幅宽:1600---3000 mm

检测速度:80---260 m/min

检测精度:0.08—0.25 mm²(10DN≤灰度差)

相机: DALSA 彩色8K相机

镜头:PENTAX YF3528

System parameters:


Detection width: 1600-3000 mm


Detection speed: 80-260 M / min


Detection accuracy: 0.08-0.25 mm 2 (10dn ≤ gray difference)


Camera: DALSA color 8K camera


Lens: Pentax yf3528


产 品 描 述
INTRODUCTION

        系统主要由检测支架、控制柜及互联电缆三大部分组成,检测相机与成像装置位于检测支架上,检测支架宽度按机台安装要求定制。控制柜标配单显示器。质检系统的相机型号与数量,取决于客户产品生产对检测精度与速度的要求。KSTB 系列产品能覆盖对各类复合膜、镀铝膜等卷材的质量检测。

        The system is mainly composed of detection bracket, control cabinet and interconnection cable. The detection camera and imaging device are located on the detection bracket, and the width of the detection bracket is customized according to the machine installation requirements. The control cabinet is equipped with single display as standard. The type and quantity of cameras in the quality inspection system depend on the requirements of the customer's product production for the detection accuracy and speed. KSTB series products can cover all kinds of composite film, aluminum film and other coil quality testing.



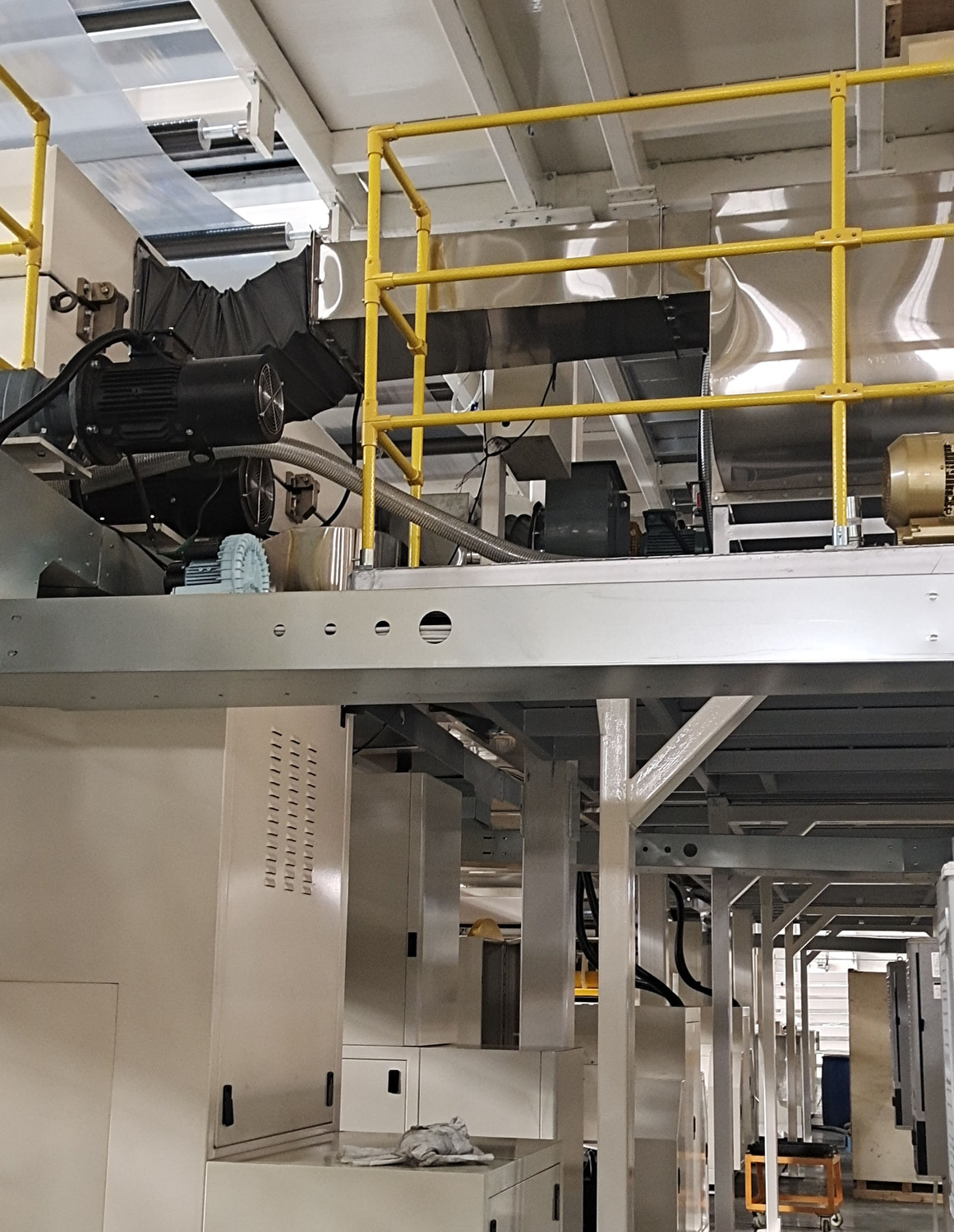

        KSTB 为科赛涂布与膜质量检测系列产品,可安装于涂布机、复合机、复卷品检机与分切机等平台上,既可用于对涂布、复合等过程的实时、完全在线质量检测,也可对上述过程的结果卷筒进行离线质量检测。系统可及时显示检出缺陷并声光报警,生成缺陷检测记录,KSTB 可按客户要求支持对指定缺陷贴标、机台正转检反转剔及遇到筛选缺陷时立即、准确停机剔废等功能,是涂布、复合后等卷材出货前的主要质量控制手段。

        KSTB is a series of cosai coating and film quality inspection products, which can be installed on the platforms of coater, laminating machine, rewinding product inspection machine and slitting machine. It can be used for real-time and complete online quality inspection of coating, laminating and other processes, as well as offline quality inspection of the results of the above processes. The system can timely display the detected defects and sound and light alarm, generate defect detection records. KSTB can support the functions of labeling the specified defects, machine forward and reverse inspection, and stop the machine immediately and accurately to eliminate the waste when encountering the screening defects according to the customer's requirements. It is the main means of quality control before coil delivery, such as after coating and compounding.

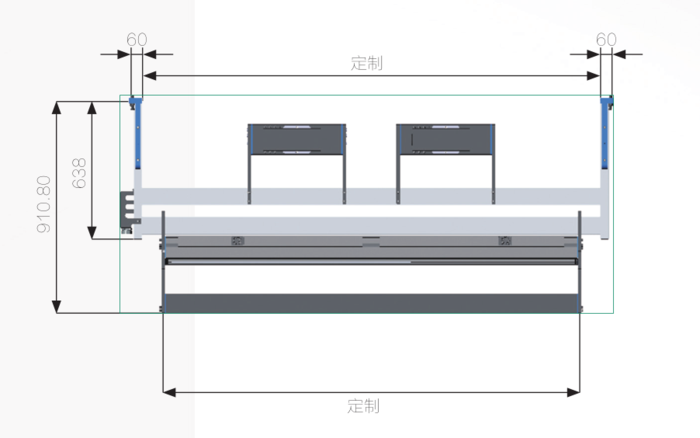

        双相机 2C4K/2C4K2 检测支


        Dual camera 2c4k / 2c4k2 detector

单相机 1C8K2 检测支架.png



        单相机 1C8K2 检测支架

        Single camera 1c8k2 detection bracket

双相机 2C4K2C4K2 检测支架.png



        控制柜


        Control cabinet




        根据客户要求定制

        Customized according to customer requirements
